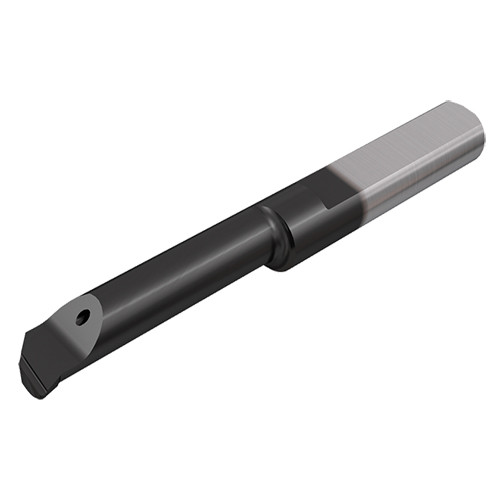

PICCO R 050.5-20NC IC908
PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling

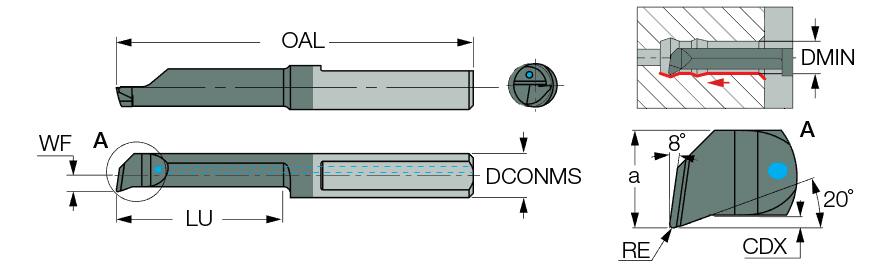

| Connection Diameter Machine Side (DCONMS) | 5.05 mm | Corner Radius (RE) | 0.15 mm |
| Minimum Bore Diameter (DMIN) | 5 mm | Cutting Depth Maximum (CDX) | 0.5 mm |
| Functional Length (LF) | 41 mm | Functional Width (WF) | 1.9 mm |
| Cutting Direction (HAND) | Right Hand | Usable Length (LU) | 19 mm |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Edge Material | Carbide |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Front End Width (a) | 4.4 mm | Unit | M |
Product Features
| Family Description | PICCO-JETCUT inserts with chipformers and inner coolant channel, for internal boring and profiling | FamilyName | PICCO R/L 050-NC (Turning, with Chipbreaker) |
| Remarks | All left-hand inserts on request Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only | BrandName | Iscar |
| COO | Germany |
Shipping Info
Weight per item
0.1480
Name
Solid Boring Bars
FamilyName
PICCO R/L 050-NC (Turning, with Chipbreaker)
BrandName
Iscar
