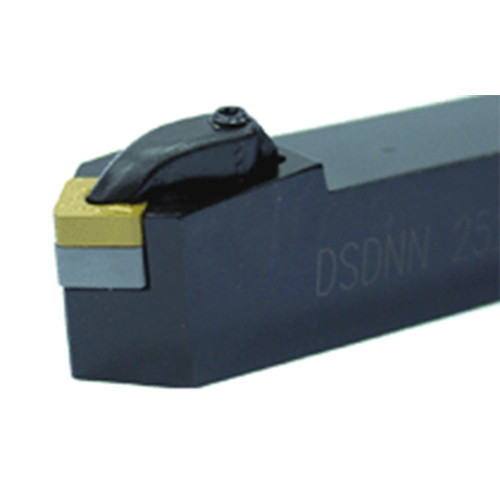

DSDNN 2525M-15
45° lead angle R-Clamp external turning tools carrying ISO negative SNMG inserts.

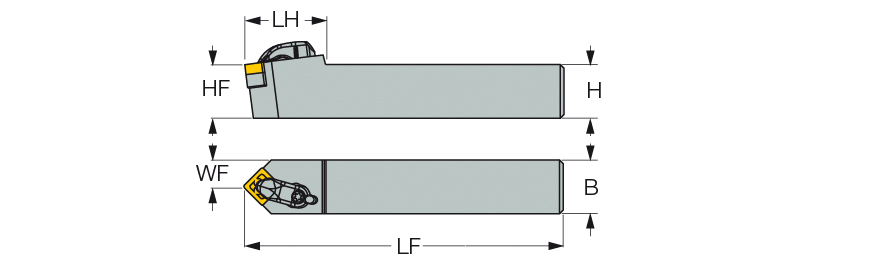

| Shank Height (H) | 25 mm | Application | | Ext. 90° Square 45° Approach | |
| Shank Width (B) | 25 mm | Rake Angle Axial (GAMP) | -8.5 Degrees |
| Functional Length (LF) | 150 mm | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 42 mm | Body Material | Steel |
| Functional Width (WF) | 12.5 mm | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 15.88 mm | Measurement Type | Metric |
| Cutting Direction (HAND) | Neutral | Unit | M |
| Master Insert Identification (MIID) | SNMG 1506 |
Product Features
| Family Description | 45° lead angle R-Clamp external turning tools carrying ISO negative SNMG inserts. | FamilyName | DSDNN |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.7790
Name
General Indexable Turning Tools
FamilyName
DSDNN
BrandName
Iscar
