SLANL 4040R-22 TANG

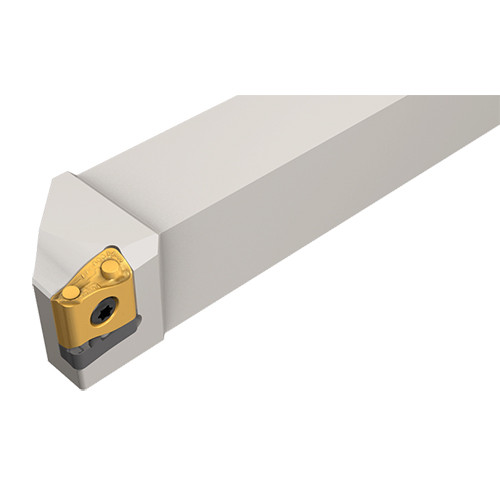

Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning.
| Shank Height (H) | 40 mm | Application | | Ext. Tangential 93° Approach | |
| Shank Width (B) | 40 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Length (LF) | 200 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Head Length (LH) | 40 mm | Body Material | Steel |
| Functional Width (WF) | 47 mm | Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | LNMX 2210.. | Unit | M |
Product Features
| Family Description | Screw-lock tools carrying the LNMX.. tangentially clamped inserts. Recommended for heavy longitudinal and face turning. | FamilyName | SLANR/L-TANG |
| Remarks | ap max for facing: LNMX 11-2.8 mm, LNMX 15-3.8 mm, LNMX 22-5.8 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
2.5500
Name
General Indexable Turning Tools
FamilyName
SLANR/L-TANG
BrandName
Iscar
