HSK A63WH MULNR J12MW

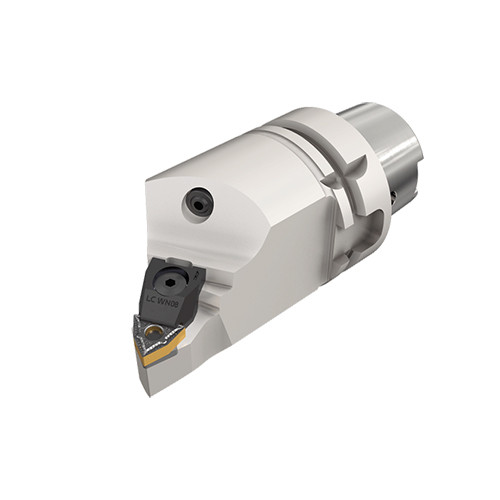

MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard.

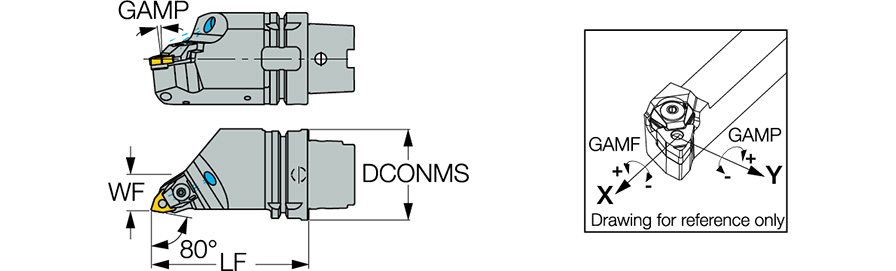

| Overall Length (OAL) | 142 mm | Application | | Ext. 80° Diamond 95° Approach | Ext. 80° Trigon 95° Approach | Ext. 90° Square 75° Approach | |
| Functional Length (LF) | 110 mm | Rake Angle Axial (GAMP) | -6 Degrees |
| Functional Width (WF) | 25 mm | Rake Angle Radial (GAMF) | -6 Degrees |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 12.7 mm | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Master Insert Identification (MIID) | W/C/SNMG 1204 | Connection Code Machine Side (CCMS) | HSK |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
Product Features
| Family Description | MULTI-WEDGE tools with HSK exchangeable tapered shanks, carrying the negative 80° rhombic or trigon or square inserts. Can be used on turn-mill machines, comply with the ICTM standard. | FamilyName | HSK A63WH-MULNR/L-MW |

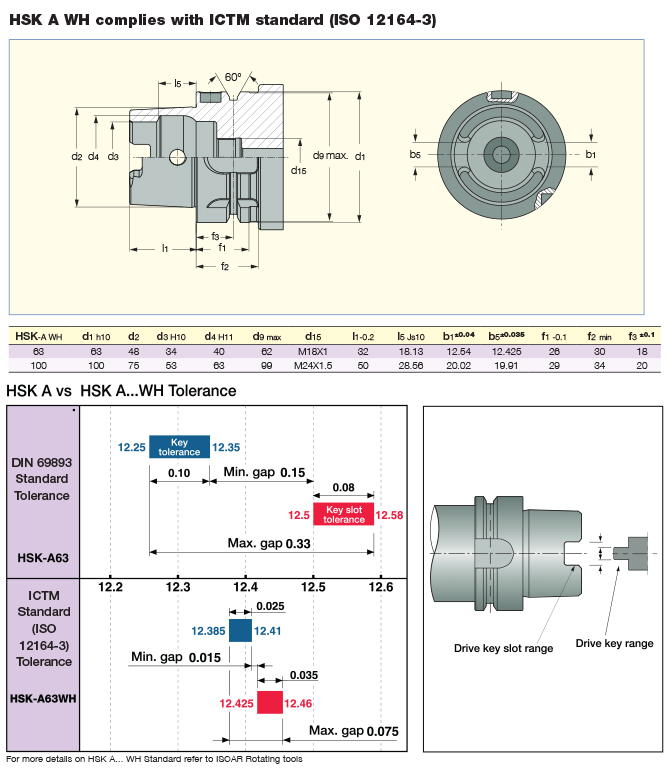

| Remarks | Complies with ICTM standard (ISO 12164-3) Only LC WN08 is supplied with the toolholder. The other two wedges should be ordered separately A cooling tube must be used with all coolant through HSK spindles (should be ordered separately) For shank dimensions, Click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.9510
Name
General Indexable Turning Tools
FamilyName
HSK A63WH-MULNR/L-MW
BrandName
Iscar
