SRGCL 08-08

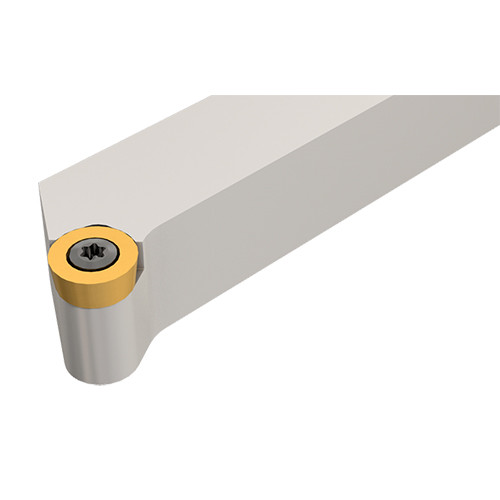

Screw lock tools carrying round inserts with 7° clearance angle.

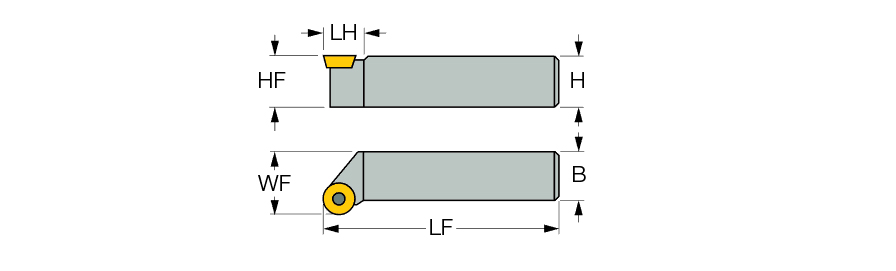

| Shank Height (H) | 1/2″ | Application | | Ext. Round Face & Turn | |
| Shank Width (B) | 1/2″ | Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 3-1/2″ | Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 0.44″ | Body Material | Steel |
| Functional Width (WF) | 0.63″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.315″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Master Insert Identification (MIID) | RC.. 08 |
Product Features
| Family Description | Screw lock tools carrying round inserts with 7° clearance angle. | FamilyName | SRGCR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.2866
Name
General Indexable Turning Tools
FamilyName
SRGCR/L
BrandName
Iscar
