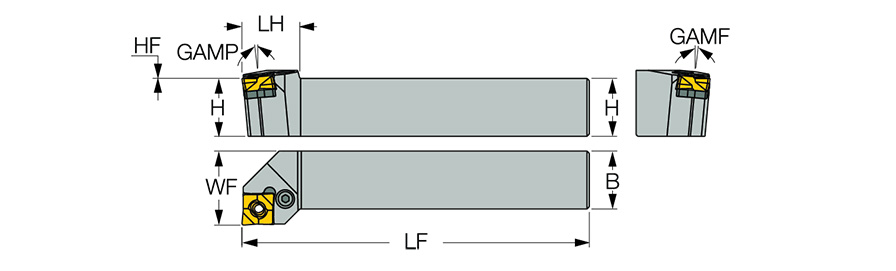

| Shank Height (H) | 3/4″ | Application | | Ext. 80° Diamond 95° Approach | |
| Shank Width (B) | 3/4″ | Rake Angle Axial (GAMP) | 6 Degrees |
| Functional Length (LF) | 4-1/2″ | Rake Angle Radial (GAMF) | 6 Degrees |
| Head Length (LH) | 1″ | Body Material | Steel |
| Functional Width (WF) | 1″ | Tool Type | Square Shank Turning Tools |
| Inscribed Circle Diameter (IC) | 0.492″ | Measurement Type | Inch |
| Cutting Direction (HAND) | Left Hand | Unit | I |
| Master Insert Identification (MIID) | CXMG 12.. |
Product Features

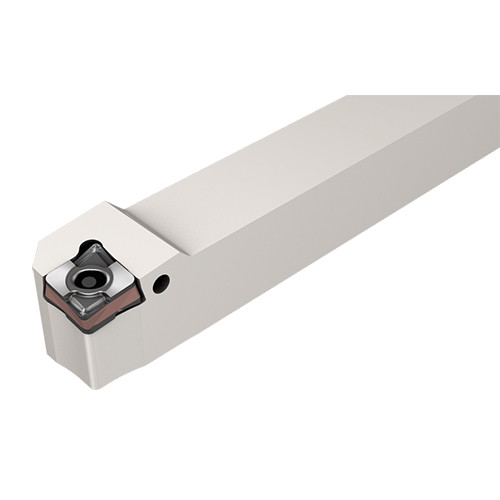

| Family Description | Lever lock tools carrying CXMG 80° rhombic inserts. | FamilyName | PCLXR/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.8267
Name
General Indexable Turning Tools
FamilyName
PCLXR/L
BrandName
Iscar
