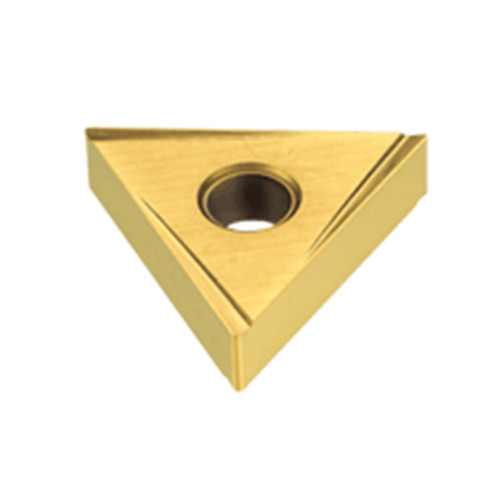

TNMZ 220404L IC570
Double-sided triangular inserts for medium and finishing applications
| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 60° Triangle 60° Approach | Ext. 60° Triangle 91° Approach | Ext. 60° Triangle 93° Approach | Ext. 60° Triangle Facing | Int. 60° Triangle 91° Approach | Int. 60° Triangle 95° Approach | | Min D.O.C. | 1 mm |
| Insert Style | TNMZ | Depth of Cut Maximum (APMX) | 4 mm |

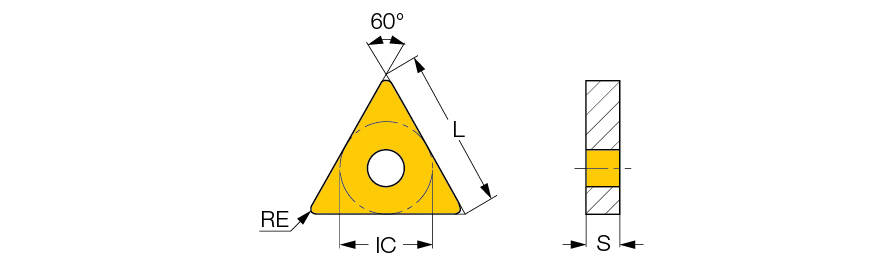

| Corner Radius (RE) | 0.4 mm | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Insert Size | 431L | Max. Turning Feed (ft(max)) | 0.4 mm/rev |
| Cutting Edge Length (L) | 22 mm | Clearance Angle Major (AN) | 0 Degrees |
| Insert Thickness (S) | 4.76 mm | Cutting Direction (HAND) | Left Hand |
| Inscribed Circle Diameter (IC) | 12.7 mm | Measurement Type | Metric |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC570 |
Product Features
| Family Description | Double-sided triangular inserts for medium and finishing applications | FamilyName | TNGZ/TNMZ |
| Remarks | TNGZ inserts should be used for finishing applications. For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Japan |
Shipping Info
Weight per item
0.0124
Name
Turning Indexable Inserts
FamilyName
TNGZ/TNMZ
BrandName
Iscar
