| Applicable Material | | Steel | Stainless Steel | | Tool Type | Turn Negative Inserts |
| Application | | Ext. 80° Trigon 95° Approach | Int. 80° Trigon 95° Approach | | Min D.O.C. | 0.3 mm |

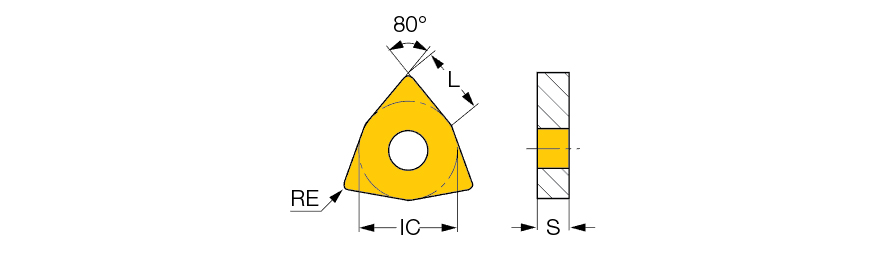

| Insert Style | WNGP | Depth of Cut Maximum (APMX) | 2 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.08 mm/rev |
| Insert Size | 040302 | Max. Turning Feed (ft(max)) | 0.3 mm/rev |
| Cutting Edge Length (L) | 4.35 mm | Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 3.18 mm | Chip Breaker Type | F2P |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Coating | TiCN+TiN | Unit | M |
| Grade | IC530N |
Product Features

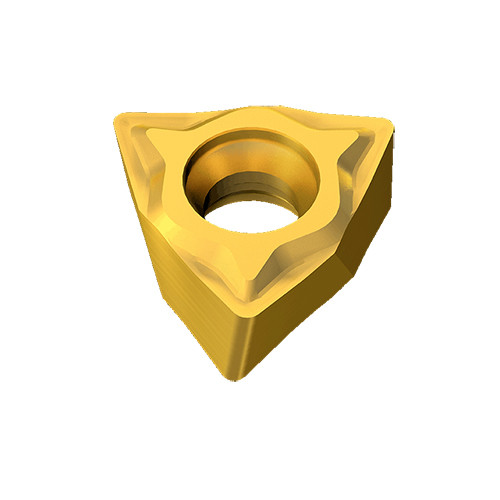

| Family Description | Double-sided inserts for super finish conditions on alloyed steel. Low cutting forces due to positive rake. Negative and positive alternating flanks that enabled bar design with a firm insert clamping and small minimum diameter. | FamilyName | WNGP-F2P |
| COO | Japan | BrandName | Iscar |
Shipping Info
Weight per item
0.0022
Name
Turning Indexable Inserts
FamilyName
WNGP-F2P
BrandName
Iscar
