| Applicable Material | | Aluminum / Non-Ferrous Materials | | Tool Type | Turn Inserts AL, HTA Geometric |
| Application | | Ext. 35° Diamond 112° Approach | Ext. 35° Diamond 117° Approach | Ext. 35° Diamond 72.5° Approac | Ext. 35° Diamond 91° Approach | Ext. 35° Diamond 93° Approach | Ext. Turning Aluminum Wheels | Int. 35° Diamo 95° Back Approa | Int. 35° Diamond 107.5°Approa | Int. 35° Diamond 142° Approach | Int. 35° Diamond 93° Approach | Int. 35° Diamond 95° Approach | Int. Machining Aluminum Wheels | Y Axis for Swiss Type Machines | | Min D.O.C. | 0.5 mm |
| Insert Style | VCGT | Depth of Cut Maximum (APMX) | 2.5 mm |
| Corner Radius (RE) | 0.2 mm | Min. Turning Feed (ft(min)) | 0.05 mm/rev |
| Insert Size | 160402 | Max. Turning Feed (ft(max)) | 0.25 mm/rev |

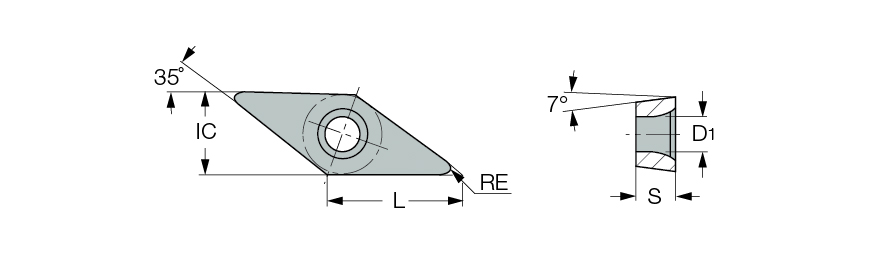

| Cutting Edge Length (L) | 16.6 mm | Clearance Angle Major (AN) | 7 Degrees |
| Insert Thickness (S) | 4.76 mm | Chip Breaker Type | AS |
| Inscribed Circle Diameter (IC) | 9.52 mm | Measurement Type | Metric |
| Coating | DLC | Body Material | Carbide |
| Grade | IC1520 | Unit | M |
| Fixing Hole Diameter (D1) | 4.4 mm |
Product Features

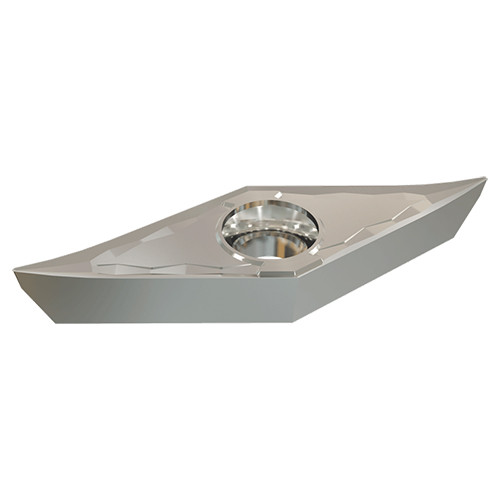

| Family Description | 35° rhombic inserts with a 7° positive flank, very positive rake angle and sharp cutting edge for machining aluminum. | FamilyName | VCGT-AS |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Korea |
Shipping Info
Weight per item
0.0103
Name
Turning Indexable Inserts
FamilyName
VCGT-AS
BrandName
Iscar
