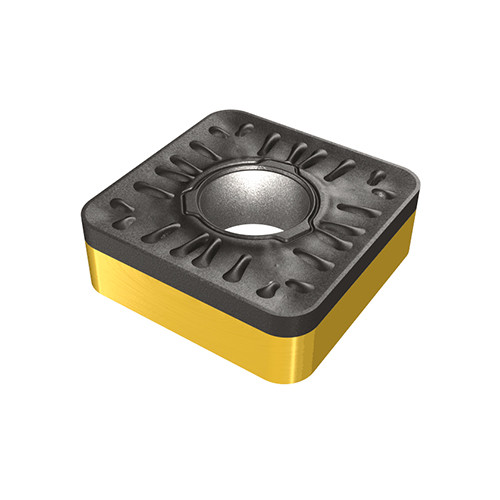

SNMM 120408-R3P IC830
Single-sided square inserts for rough turning applications on steel.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 5.16 mm |
| Application | | Ext. 90° Square 45° Approach | Ext. 90° Square 75° Approach | Ext. 90° Square 75° Face Appr. | Ext. 90°Square 45°Face&Turn Ap | Int. Square 75° Approach | | Tool Type | Turn Negative Inserts |
| Insert Style | SNMM | Min D.O.C. | 0.7 mm |

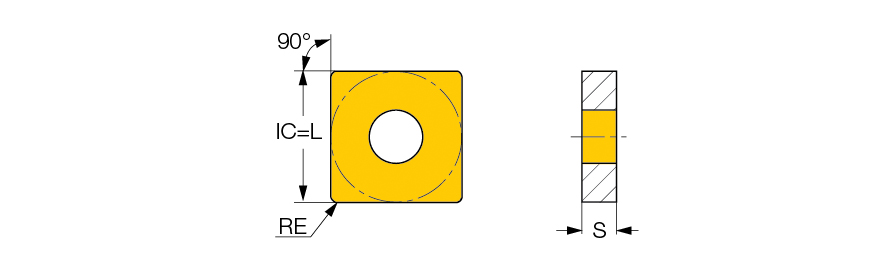

| Corner Radius (RE) | 0.8 mm | Depth of Cut Maximum (APMX) | 7.5 mm |
| Insert Size | 120408 | Min. Turning Feed (ft(min)) | 0.2 mm/rev |
| Cutting Edge Length (L) | 12.7 mm | Max. Turning Feed (ft(max)) | 0.55 mm/rev |
| Insert Thickness (S) | 4.76 mm | Clearance Angle Major (AN) | 0 Degrees |
| Inscribed Circle Diameter (IC) | 12.7 mm | Chip Breaker Type | R3P |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | Single-sided square inserts for rough turning applications on steel. | FamilyName | SNMM-R3P |
| Remarks | For dimensions and tolerances, see more info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0099
Name
Turning Indexable Inserts
FamilyName
SNMM-R3P
BrandName
Iscar
