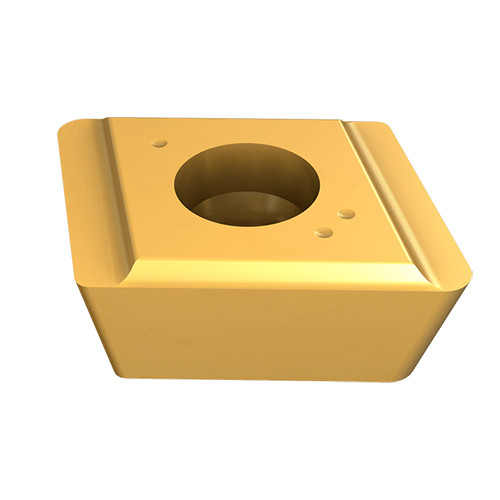

NPMT 120408L-HF-C IC948
Internal and central Inserts for Drilling Heads DSD-EF-FB / DDD-EF-FB

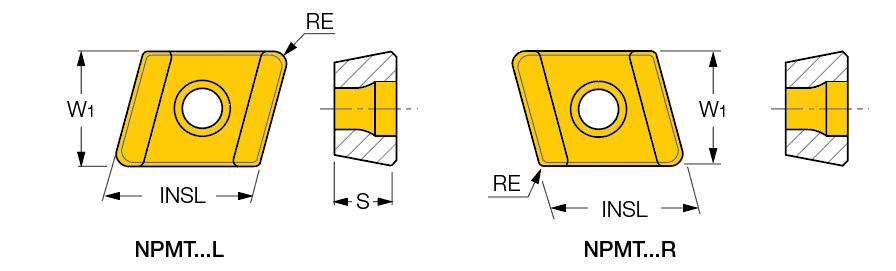

| Cutting Edge Length (L) | 10 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Thickness (S) | 4 mm | Cutting Edge Material | Carbide |
| Inscribed Circle Diameter (IC) | 12.5 mm | Tool Type | Gun Drill Inserts |
| Corner Radius (RE) | 0.8 mm | Measurement Type | Metric |
| Coating | TiAlCrN | Cutting Direction (HAND) | Left Hand |
| Grade | IC948 | Body Material | Carbide |
| Application | | Deep Drilling | | Unit | M |
Product Features
| Family Description | Internal and central Inserts for Drilling Heads DSD-EF-FB / DDD-EF-FB | COO | Japan |
