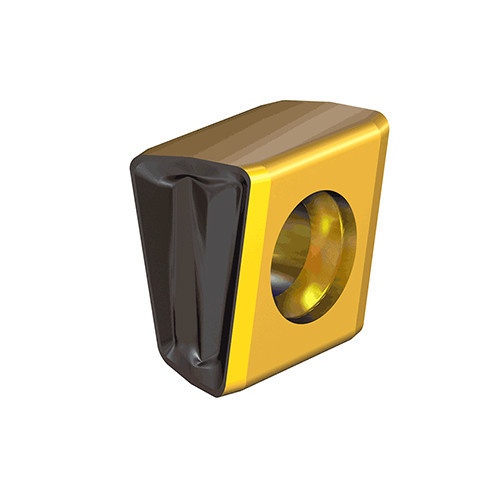

T490 LNMT 1106PNR-PLS IC845
HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts.
| Applicable Material | | Steel | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Facing | Shouldering | Slotting | | Cutting Direction (HAND) | Right Hand |

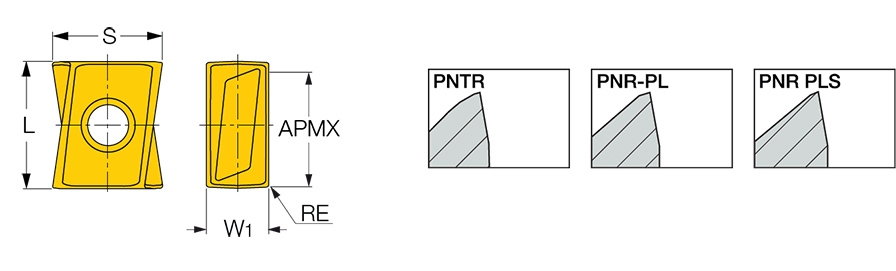

| Insert Length (INSL) | 10.5 mm | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.8 mm | Tool Type | Mill Tangential Inserts |
| Depth of Cut Maximum (APMX) | 9 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Width (W1) | 6 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 11.3 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | AlTiN+TiN | Unit | M |
| Grade | IC845 |
Product Features
| Family Description | HELITANG - Tangentially clamped inserts with 4 helical cutting edges. The unique pocket design prevents insert pull-out and enables tools with larger core diameters compared with regular radially orientated inserts. | FamilyName | T490 LNMT/LNHT 1106 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0069
Name
Milling Indexable Inserts
FamilyName
T490 LNMT/LNHT 1106
BrandName
Iscar
