| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | PCD |
| Application | | Facing | Rampdown | Shouldering | Slotting | | Tool Type | Mill Ultra hard Inserts |

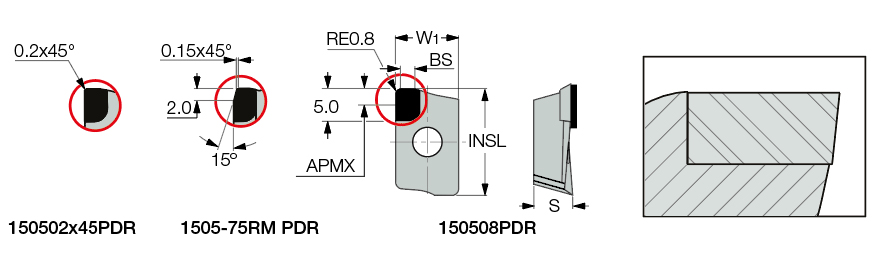

| Insert Length (INSL) | 16.18 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Corner Radius (RE) | 0.8 mm | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 4.5 mm | Cutting Edge Effective Length (LE) | 2 mm |
| Insert Width (W1) | 9.6 mm | Measurement Type | Metric |
| Insert Thickness (S) | 5.83 mm | Body Material | Carbide |
| Grade | ID8 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
Product Features

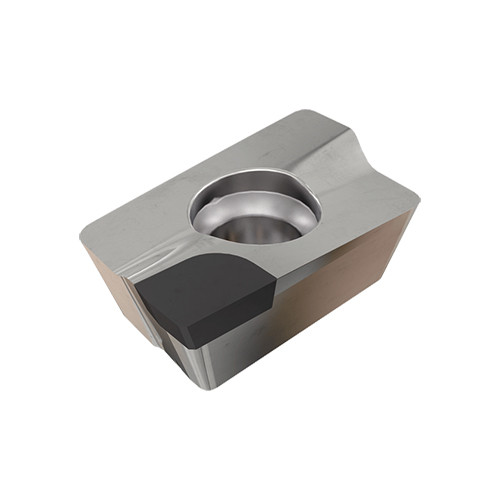

| Family Description | A single corner R.H. PCD tipped milling insert, used for machining aluminum with excellent surface finish results. ID 5 for aluminum with up to 12% silicon and ID8 for higher silicon contents. | FamilyName | ADKW (PCD) |
| Remarks | The inserts are supplied with spare screws. For D.O.C and cutting speed data, see More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0155
Name
Milling Indexable Inserts
FamilyName
ADKW (PCD)
BrandName
Iscar
