| Applicable Material | | Steel | Cast Iron | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |
| Application | | Facing | Slanted Shoulder & Chamfer | | Cutting Edge Material | Carbide |

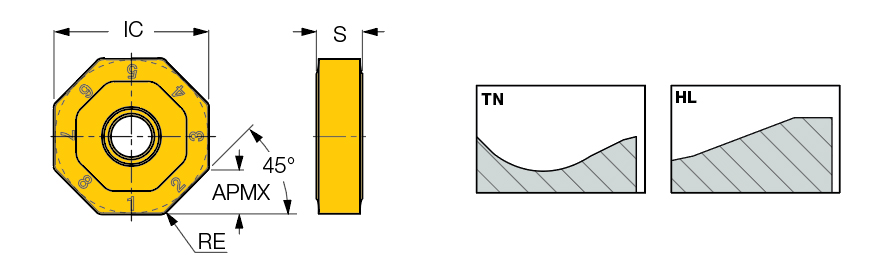

| Corner Radius (RE) | 0.8 mm | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 5.5 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Inscribed Circle Diameter (IC) | 20.2 mm | Number of Cutting Edges | 16 |
| Insert Thickness (S) | 6 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 135 Degrees | Body Material | Carbide |
| Coating | AlTiN | Unit | M |
| Grade | IC910 |
Product Features

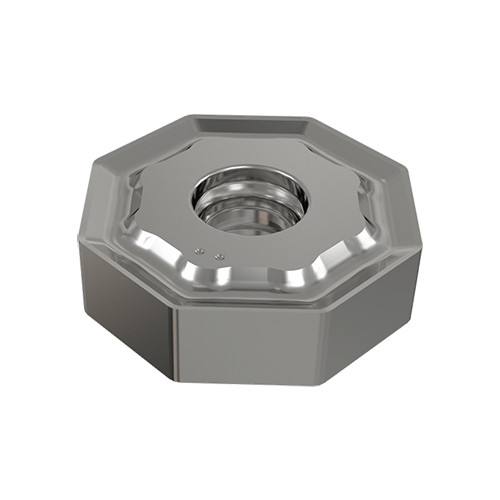

| Family Description | Double-sided octagonal face milling inserts used on cast iron. HL - For rough applications and inhomogeneous surfaces. | FamilyName | ONHU/ONMU-08-TN/HL |
| Remarks | For FEEDMILL tools, see the feed conditions for the FF NM tools. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0261
Name
Milling Indexable Inserts
FamilyName
ONHU/ONMU-08-TN/HL
BrandName
Iscar
