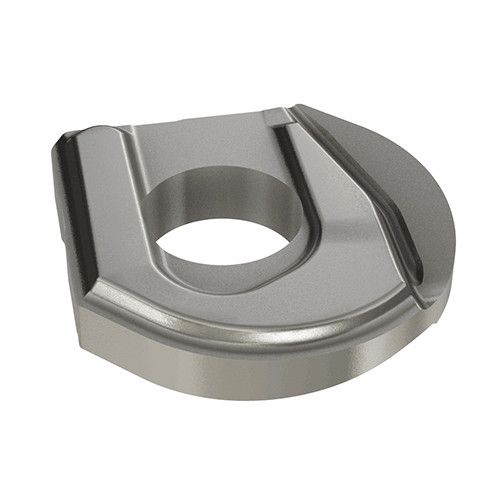

HBF D250-QF IC908
BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for high-quality finishing profiling, up and down ramping, steep profiles and undercutting. Accuracy is within 0.005mm.
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Direction (HAND) | Right Hand |
| Application | | Profiling | Rampdown | Undercutting | | Cutting Edge Material | Carbide |

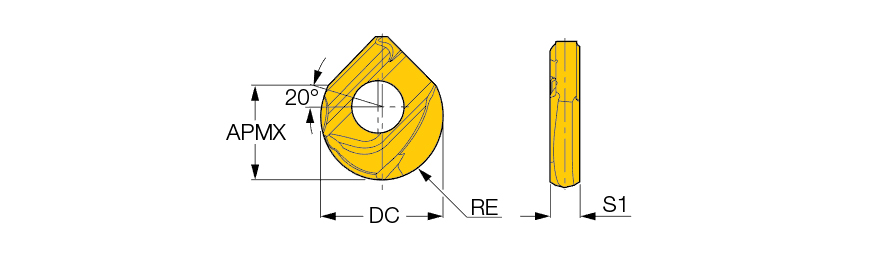

| Corner Radius (RE) | 12.5 mm | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 17 mm | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Insert Thickness (S) | 5.4 mm | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth | Unit | M |
Product Features
| Family Description | BALLPLUS, 2 cutting edges (fully effective), 220° spherical cutting profile inserts. Used for high-quality finishing profiling, up and down ramping, steep profiles and undercutting. Accuracy is within 0.005mm. | FamilyName | HBF-QF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0328
Name
Milling Indexable Inserts
FamilyName
HBF-QF
BrandName
Iscar
