LNET 083504-TN-N IC928

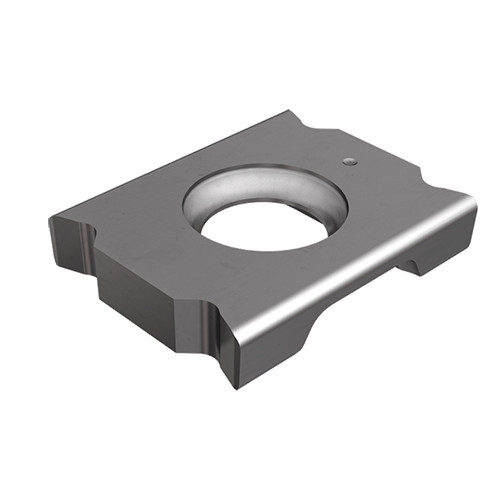

MINI-TANGSLOT Tangentially clamped inserts for slotting and precision grooving cutters. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Application | | Side Slotting | Slitting | Slotting | T Slotting | | Cutting Edge Material | Carbide |

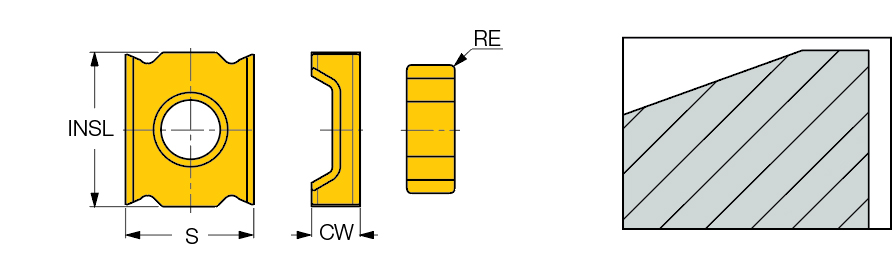

| Insert Length (INSL) | 8.4 mm | Tool Type | Mill Tangential Inserts |
| Corner Radius (RE) | 0.4 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Insert Width (W1) | 8.4 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 6.85 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 90 Degrees | Body Material | Carbide |
| Coating | TiAlN | Unit | M |
| Grade | IC928 |
Product Features
| Family Description | MINI-TANGSLOT Tangentially clamped inserts for slotting and precision grooving cutters. The inserts have a chipformer that reduces the cutting forces and leaves a clean, undamaged surface. | FamilyName | LNET 08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0026
Name
Milling Indexable Inserts
FamilyName
LNET 08
BrandName
Iscar
