RCMT 1607-FW IC928

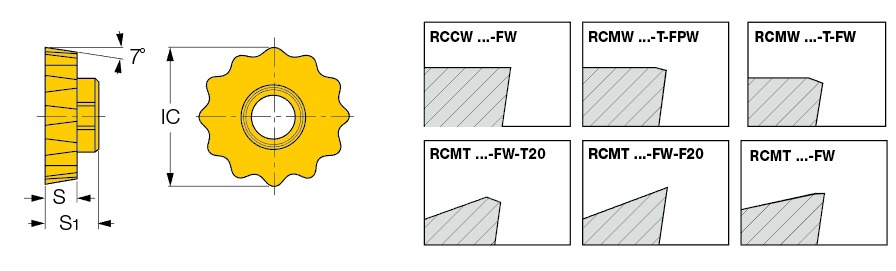

MILLSHRED, fully effective, serrated inserts with four options for indexing orientation Produces small chips for easy evacuation, even from deep cavities. Small cutting forces - therefore the required machining power is low.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.2 mm/tooth |
| Insert Thickness (S) | 5 mm | Number of Cutting Edges | 4 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC928 | Body Material | Carbide |
| Maximum Feed per Tooth (fz(max)) | 0.35 mm/tooth | Unit | M |
Product Features

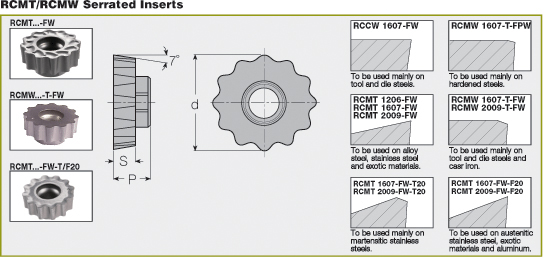

| Family Description | MILLSHRED, fully effective, serrated inserts with four options for indexing orientation Produces small chips for easy evacuation, even from deep cavities. Small cutting forces - therefore the required machining power is low. | FamilyName | RCMT/RCMW/RCCW-FW |
| Remarks | For chipformer details click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0126
Name
Milling Indexable Inserts
FamilyName
RCMT/RCMW/RCCW-FW
BrandName
Iscar
