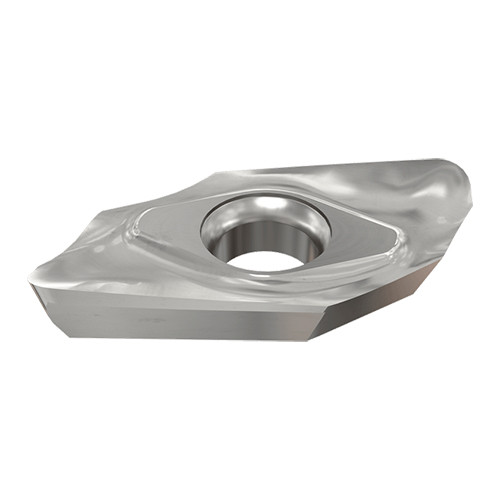

HM90 APCR 160520R-P IC08
HELIALU super positive and polished rake inserts for machining aluminum.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Maximum Feed per Tooth (fz(max)) | 0.25 mm/tooth |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Edge Material | Carbide |

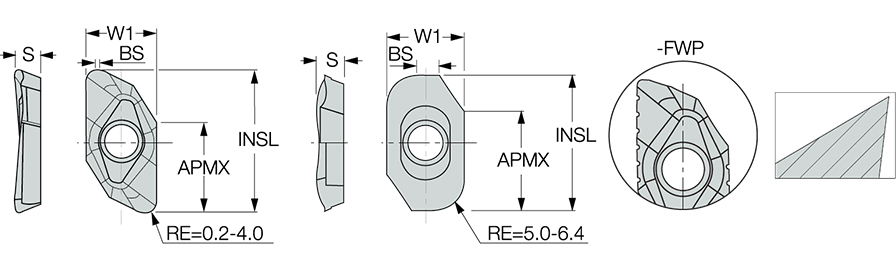

| Insert Length (INSL) | 25.4 mm | Tool Type | Mill AL, HTA Geometric Inserts |
| Corner Radius (RE) | 2 mm | Minimum Feed per Tooth (fz(min)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 15.5 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 12.8 mm | Cutting Edge Effective Length (LE) | 15.7 mm |
| Insert Thickness (S) | 4.8 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 1 mm | Body Material | Carbide |
| Coating | Uncoated | Unit | M |
| Grade | IC08 |
Product Features
| Family Description | HELIALU super positive and polished rake inserts for machining aluminum. | FamilyName | HM90 APCR 1605..R-P |
| Remarks | It is recommended to use the insert and screw set when machining at very high cutting speeds (see HSM90 SET). | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0119
Name
Milling Indexable Inserts
FamilyName
HM90 APCR 1605..R-P
BrandName
Iscar
