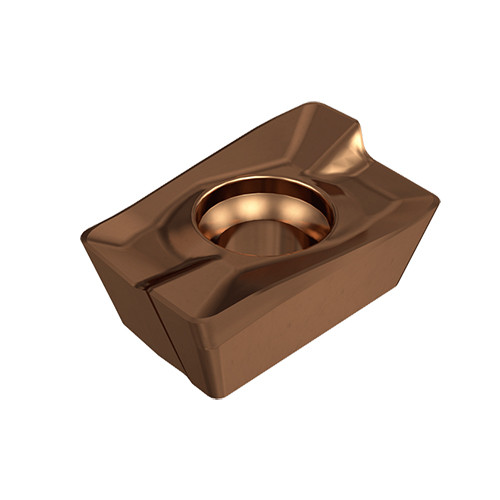

HM90 ADKT 1505PDR IC328
HELI2000 milling inserts with various corner radii for general use.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Slanted Shoulder & Chamfer | Slotting | | Tool Type | Single sided Inserts |

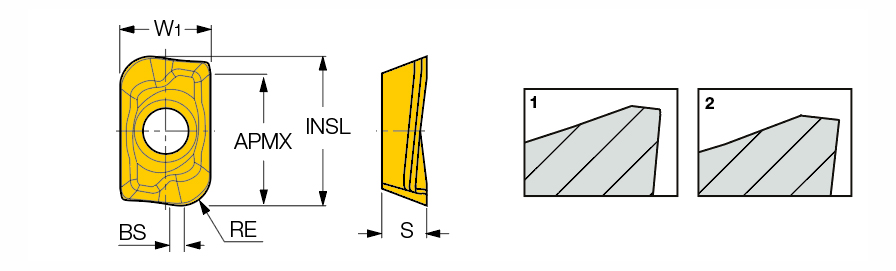

| Insert Length (INSL) | 16.18 mm | Figure | 2 |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 9.65 mm | Cutting Edge Effective Length (LE) | 14.5 mm |
| Insert Thickness (S) | 5.85 mm | Measurement Type | Metric |
| Coating | TiCN | Body Material | Carbide |
| Grade | IC328 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | HELI2000 milling inserts with various corner radii for general use. | FamilyName | HM90 ADKT 1505 |
| Remarks | For inserts with corner radii larger than 2.0 mm, the cutter body and seats should be modified Inserts with corner radii larger than 0.8 mm should be used on ADK & SM tools only on the face of the cutter. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0082
Name
Milling Indexable Inserts
FamilyName
HM90 ADKT 1505
BrandName
Iscar
