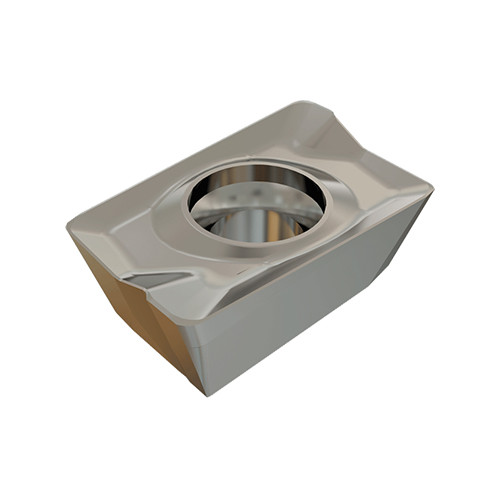

ADKT 1505PDR-HM IC28
HELIMILL inserts with 2 helical cutting edges for general use.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Direction (HAND) | Right Hand |
| Application | | Bottom Shouldering | Counter Boring | Countersinking | Drill Mill | Facing | Plunging & Recessing | Rampdown | Shouldering | Side Slotting | Slanted Shoulder & Chamfer | Slotting | T Slotting | | Cutting Edge Material | Carbide |

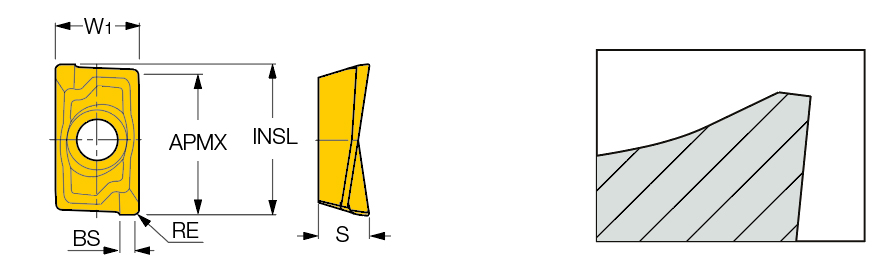

| Insert Length (INSL) | 15.65 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.08 mm/tooth |
| Depth of Cut Maximum (APMX) | 12 mm | Number of Cutting Edges | 2 |
| Insert Width (W1) | 9.57 mm | Cutting Edge Effective Length (LE) | 13.75 mm |
| Insert Thickness (S) | 5.64 mm | Measurement Type | Metric |
| Coating | Uncoated | Body Material | Carbide |
| Grade | IC28 | Unit | M |
| Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
Product Features
| Family Description | HELIMILL inserts with 2 helical cutting edges for general use. | FamilyName | ADKT 1505PDR/L-HM |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0182
Name
Milling Indexable Inserts
FamilyName
ADKT 1505PDR/L-HM
BrandName
Iscar
