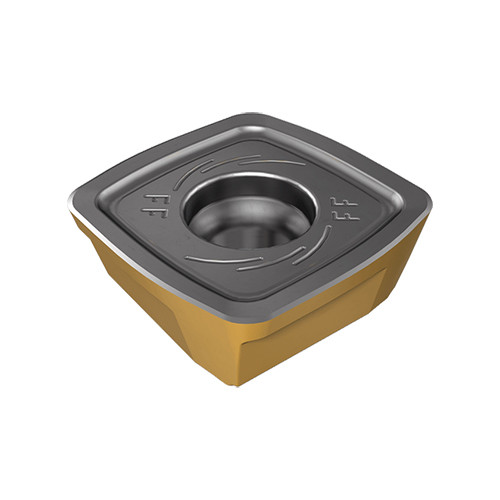

SDMT 1205R16T-FF IC808
Insert with 4 cutting edges for fast feed milling
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 1.4 mm/tooth |
| Application | | Facing | Fast Feed Milling | Plunging & Recessing | Profiling | Rampdown | Shouldering | Side Plunging | Slotting | | Cutting Edge Material | Carbide |

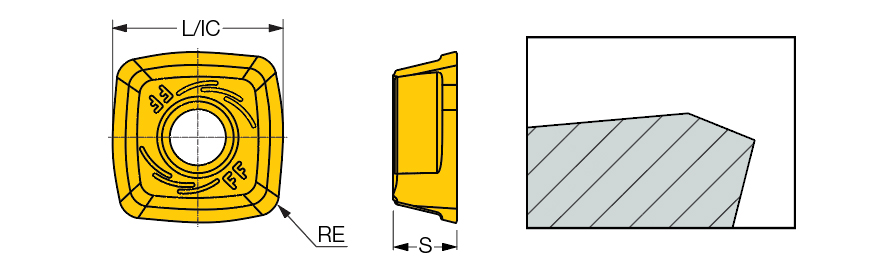

| Insert Length (INSL) | 13.7 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 1.6 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Insert Thickness (S) | 5.1 mm | Measurement Type | Metric |
| Wiper Edge Length (BS) | 2 mm | Body Material | Carbide |
| Coating | TiAlN+AlTiN+TiN | Unit | M |
| Grade | IC808 |
Product Features
| Family Description | Insert with 4 cutting edges for fast feed milling | FamilyName | SDMT-FF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0089
Name
Milling Indexable Inserts
FamilyName
SDMT-FF
BrandName
Iscar
