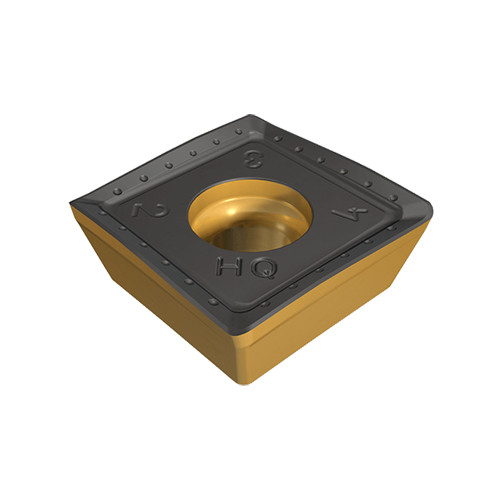

SDMT 1205PDR-HQ-MM IC830
General use inserts with four helical cutting edges for 90° shoulder milling.
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |
| Application | | Countersinking | Facing | Plunging & Recessing | Shouldering | Slotting | | Cutting Edge Material | Carbide |

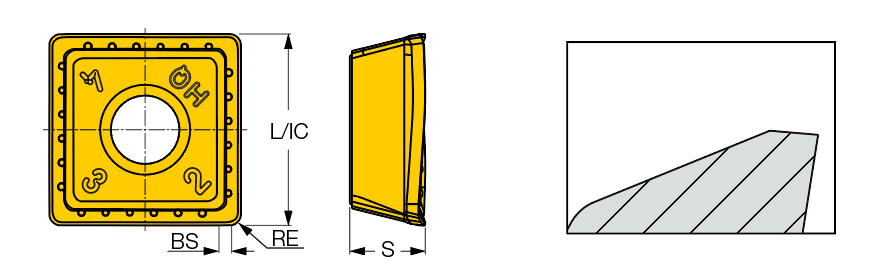

| Insert Length (INSL) | 12.75 mm | Tool Type | Single sided Inserts |
| Corner Radius (RE) | 0.8 mm | Minimum Feed per Tooth (fz(min)) | 0.07 mm/tooth |
| Insert Thickness (S) | 5 mm | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Metric |
| Coating | AlTiN+TiN | Body Material | Carbide |
| Grade | IC830 | Unit | M |
Product Features
| Family Description | General use inserts with four helical cutting edges for 90° shoulder milling. | FamilyName | SDMT-PDR-HQ |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0083
Name
Milling Indexable Inserts
FamilyName
SDMT-PDR-HQ
BrandName
Iscar
