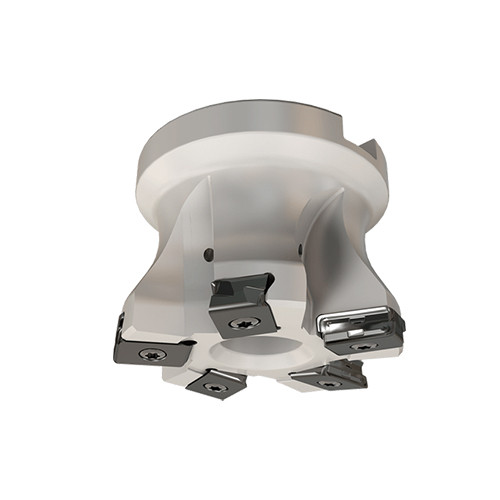

HTP D066-05-27-R-LN16
TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. 14 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom.

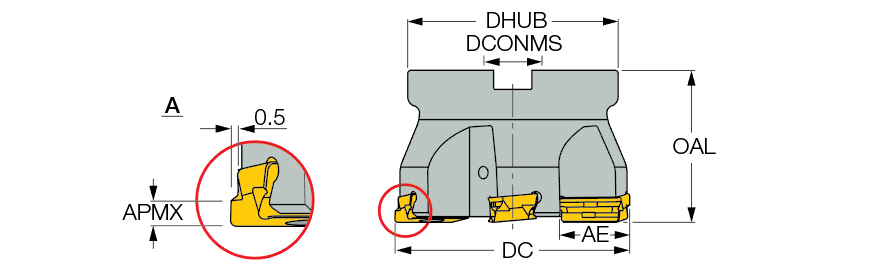

| Application | | Facing | Shouldering | Side Plunging | | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 66 mm | Cutting Direction (HAND) | Right Hand |
| Cutting Item Count (CICT) | 5 | Measurement Type | Metric |
| Depth of Cut Maximum (APMX) | 3 mm | Tool Type | Plungers cutters |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Body Material | Steel |
| Face Effective Cutting Edge Count (ZEFF) | 5 | Body Diameter (BD) | 62 mm |
| Overall Length (OAL) | 50 mm | Unit | M |
Product Features
| Family Description | TANGPLUNGE, Shell mill plungers carrying tangentially clamped inserts with 4 cutting edges. 14 mm side plunging capacity and 3 mm maximum face milling DOC. Provide excellent side wall surface finish and a flat bottom. | FamilyName | HTP-R-LN16 |

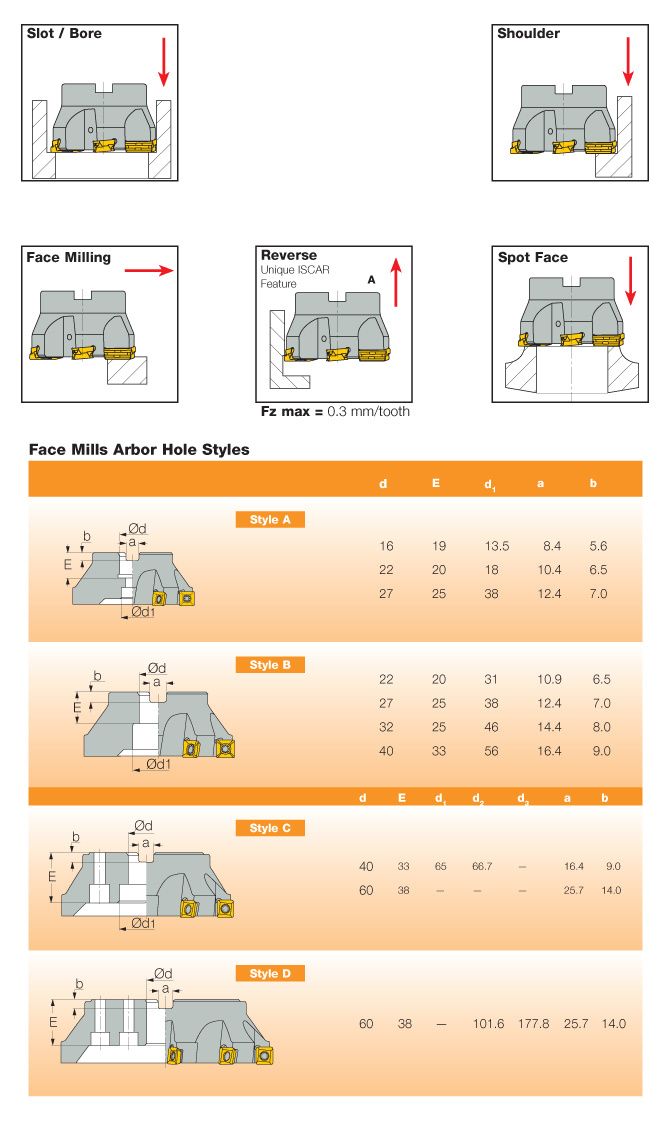

| Remarks | A-Used for rear cutting-see More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.7860
Name
Plunge Mills
FamilyName
HTP-R-LN16
BrandName
Iscar
