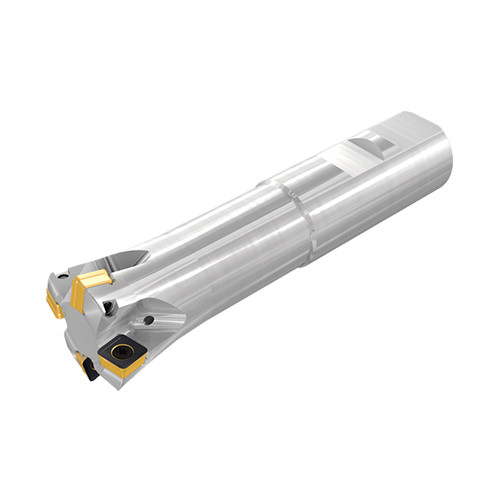

FFQ4 D1.25-4-2.5-W1.00-09
Fast feed endmills carrying single-sided Inserts with 4 cutting edges.

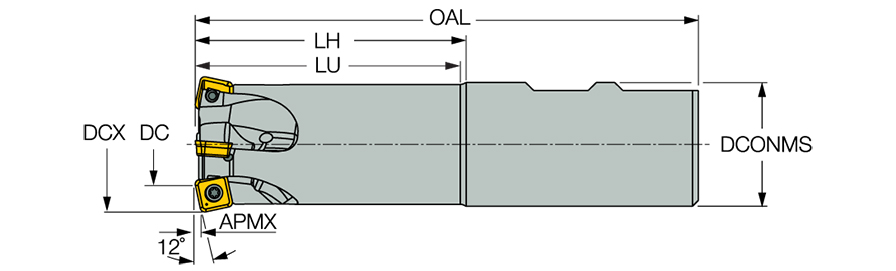

| Cutting Diameter (DC/DCX) | 1-1/4″ | Usable Length (LU) | 2.44″ |
| Cutting Diameter (DC) | 0.689″ | Torque (TQ) | 17.7 lbfxin |
| Cutting Item Count (CICT) | 4 | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 0.047″ | Tool Cutting Edge Angle (KAPR) | 12 Degrees |
| Overall Length (OAL) | 4.8″ | Cutting Direction (HAND) | Right Hand |
| Shank Type | Weldon | Measurement Type | Inch |
| Ramping Angle Maximum (RMPX) | 3.3 Degrees | Body Material | Steel |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Connection Code Machine Side (CCMS) | Weldon |
| Connection Diameter Machine Side (DCONMS) | 1″ | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Master Insert Identification (MIID) | FFQ4 SOMT 090412T | Unit | I |
| Head Length (LH) | 2-1/2″ |
Product Features
| Family Description | Fast feed endmills carrying single-sided Inserts with 4 cutting edges. | FamilyName | FFQ4 D-W-09 |

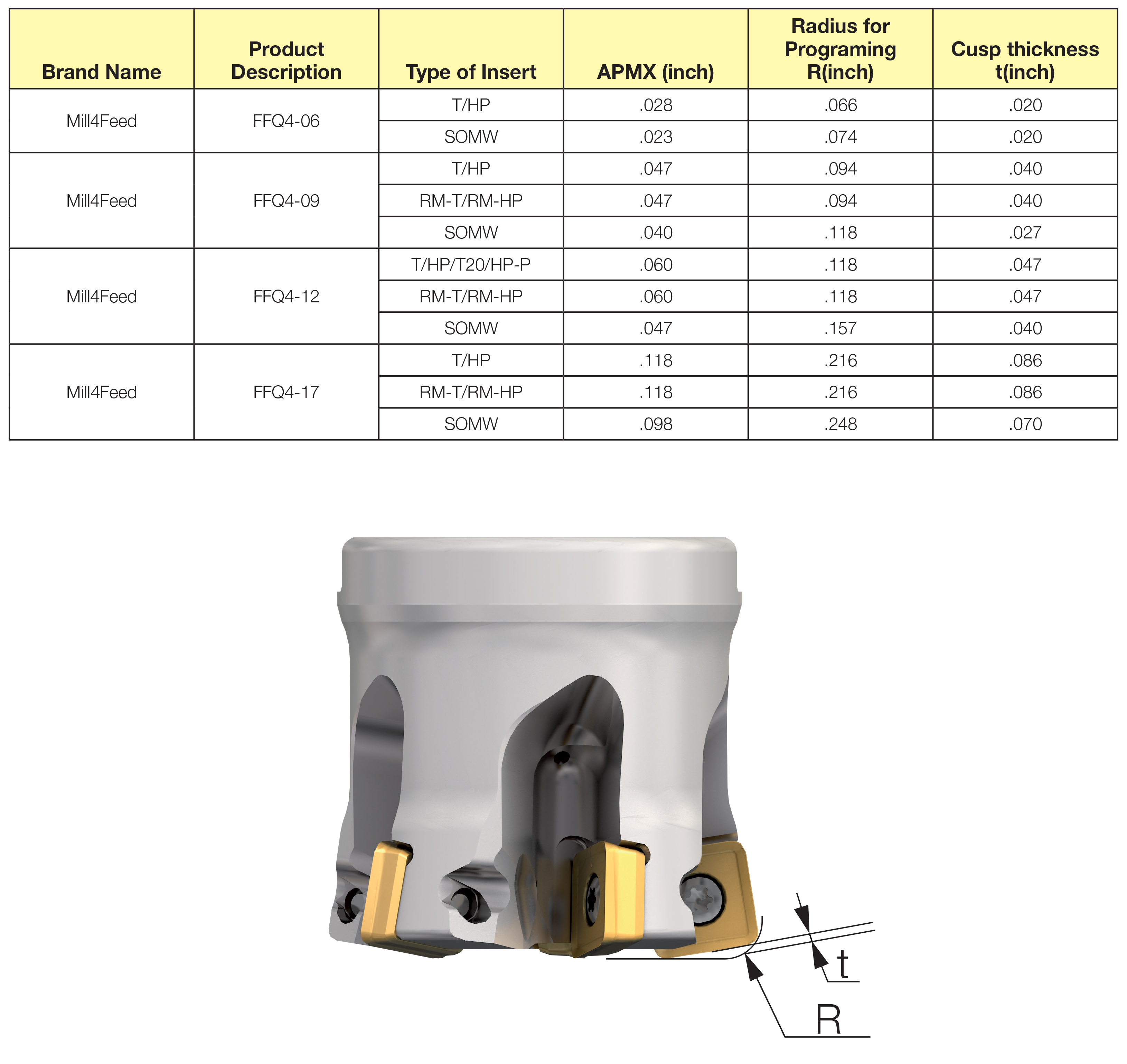

| Remarks | To generate a straight surface without cusps, the width of cut must not exceed DC Radius for programming: for insert SOMT .098, for insert SOMW .118 When mounting insert SOMW, APMX=.039 For slot milling or machining with high tool overhang, the maximum depth of cut should be reduced by 50% For cutting conditions click on More info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.1045
Name
Indexable End Mills
FamilyName
FFQ4 D-W-09
BrandName
Iscar
