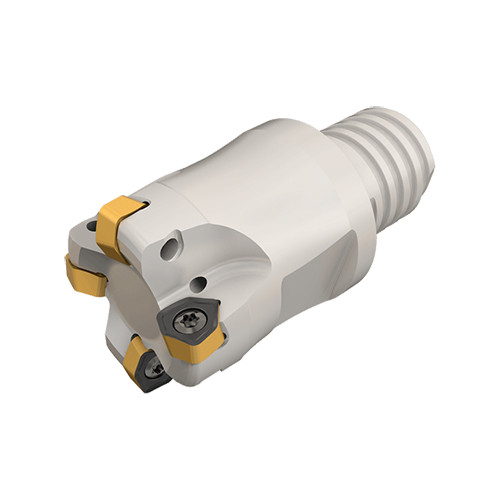

FF EWX D20-3-MMT12-04
HELIDO UPFEED endmills with MULTI-MASTER threaded adaptation, for fast feed, that mount double-sided Inserts with 6 cutting edges.
| Cutting Diameter (DC/DCX) | 12.6 mm | Drive Size (DRVS) | 15 mm |
| Cutting Diameter (DC) | 12.6 mm | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 0.9 Nxm |
| Depth of Cut Maximum (APMX) | 0.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 38.8 mm | Tool Cutting Edge Angle (KAPR) | 17 Degrees |
| Ramping Angle Maximum (RMPX) | 4.8 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Side Plunging | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 18.8 mm | Body Material | Steel |
| Master Insert Identification (MIID) | H600 WXCU 040310HP | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 25 mm | Cutting Diameter Maximum (DCX) | 20 mm |
| Tool Type | Fast Feed Endmill | Unit | M |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 |
Product Features
| Family Description | HELIDO UPFEED endmills with MULTI-MASTER threaded adaptation, for fast feed, that mount double-sided Inserts with 6 cutting edges. | FamilyName | FF EWX-MM |
| Remarks | For machining recommendations, radius for programming and adaptation click on More Info Do not apply lubricant to the MULTI-MASTER threaded connection To generate a straight surface without cusps, the width of cut must not exceed DC | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1060
Name
Indexable End Mills
FamilyName
FF EWX-MM
BrandName
Iscar
