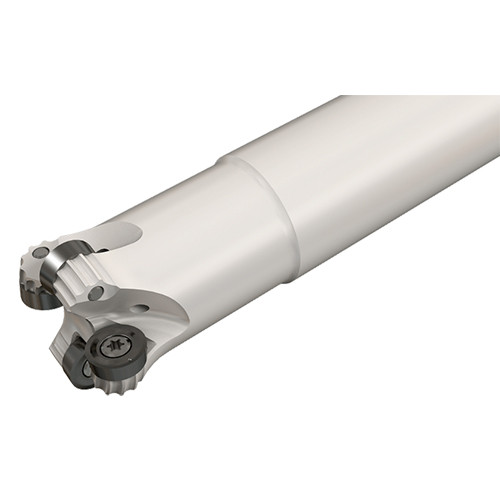

ERW D078A125-A-3-C1.00-12
MILLSHRED-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines.

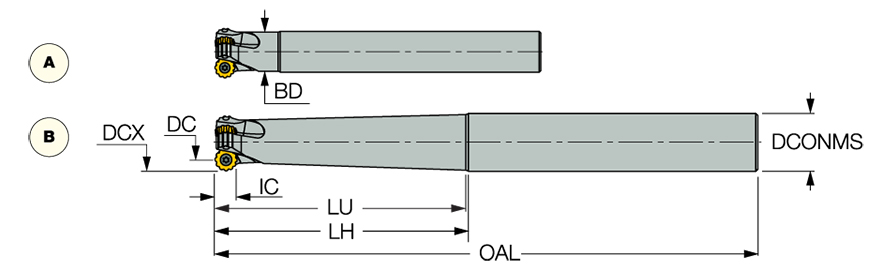

| Cutting Diameter (DC/DCX) | 0.78″ | Tool Type | Round corner cutters |
| Cutting Diameter (DC) | 0.78″ | Usable Length (LU) | 1.57″ |
| Cutting Item Count (CICT) | 3 | Body Diameter (BD) | 0.961″ |
| Depth of Cut Maximum (APMX) | 0.236″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 8″ | Front Type | A |

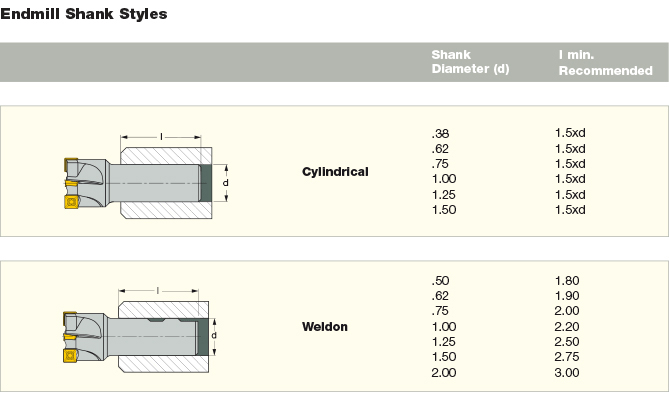

| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 7 Degrees | Measurement Type | Inch |
| Application | | Facing | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Shouldering | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | RCCT 1206MO | Cutting Diameter Maximum (DCX) | 1-1/4″ |
| Head Length (LH) | 1.6″ | Unit | I |
Product Features
| Family Description | MILLSHRED-milling cutters which can carry round inserts with serrated cutting edges or regular round inserts. Used for rough machining applications on small dies and low power machines. | FamilyName | ERW |
| Remarks | For adaptation, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
1.8497
Name
Indexable End Mills
FamilyName
ERW
BrandName
Iscar
