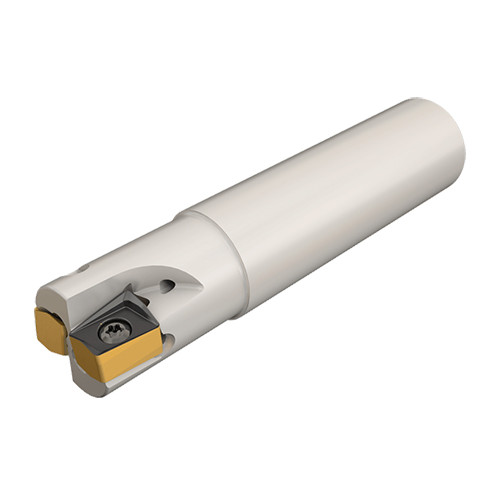

H490 E90AX D25-2-C25-12
90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line).

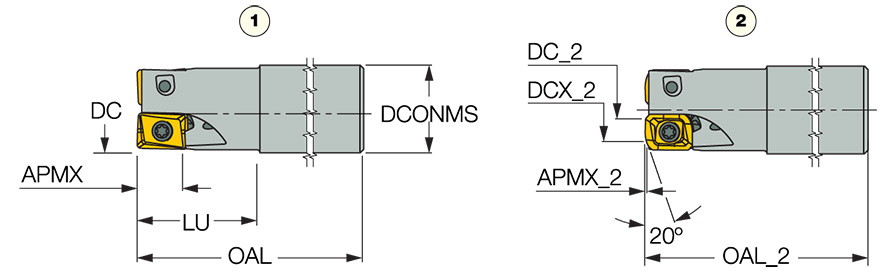

| Cutting Diameter (DC/DCX) | 25 mm | Functional Length (LF) | 110 mm |
| Cutting Diameter (DC) | 25 mm | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 2 | Flute Count (NOF) | 2 |
| Depth of Cut Maximum (APMX) | 12 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 110 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |

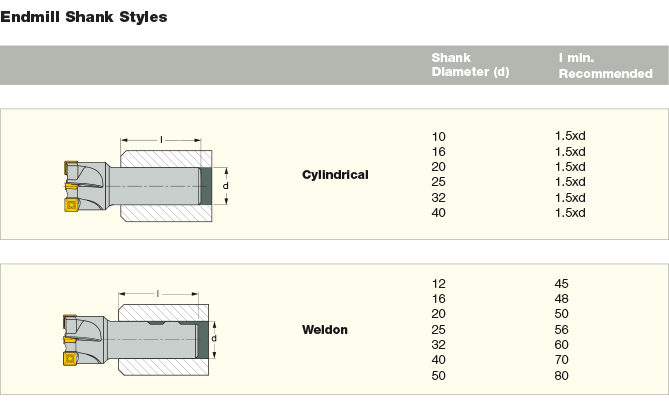

| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees | Measurement Type | Metric |
| Application | | Facing | Shouldering | Side Plunging | Slotting | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Master Insert Identification (MIID) | H490 ANKX 1205PNTRR | Unit | M |
| Head Length (LH) | 35 mm |
Product Features
| Family Description | 90° endmills carrying H490 ANKX 12...double-sided rectangular inserts with 4 helical cutting edges. Used for heavy applications (HELIDO 490 Line). | FamilyName | H490 E90AX-12 |
| Remarks | 1- with standard square insert, 2- with FF (fast feed) insert Ramping angle is valid only when H490 ANKX ANCX 1205R15T-FF insert is used When assembled the H490 ANCX 1205R15T-FF insert, tool diameter enlarges by 0.5 mm | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.4760
Name
Indexable End Mills
FamilyName
H490 E90AX-12
BrandName
Iscar
