FF EW D1.5-6.0-W1.25-09-C
FEEDMILL, fast feed endmills using FF WO.. inserts. Can run at very high feed rates of up to .059 inch/tooth at small DOC, resulting in high metal removal rates.

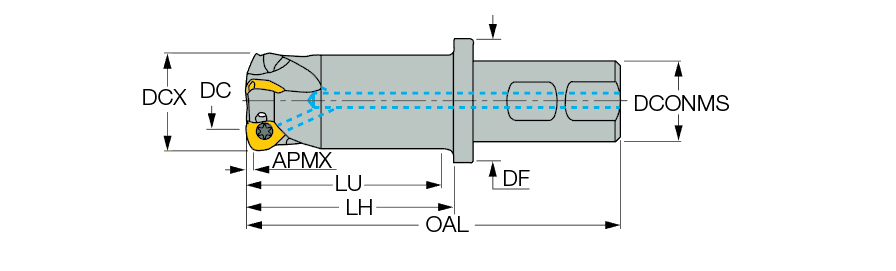

| Cutting Diameter (DC/DCX) | 0.68″ | Usable Length (LU) | 6″ |
| Cutting Diameter (DC) | 0.68″ | Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 | Torque (TQ) | 42.5 lbfxin |
| Depth of Cut Maximum (APMX) | 0.079″ | Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 8.58″ | Tool Cutting Edge Angle (KAPR) | 13 Degrees |
| Shank Type | Weldon | Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5 Degrees | Measurement Type | Inch |
| Application | | Facing | Fast Feed Milling | Helical Interpolation | Plunging & Recessing | Rampdown | Side Plunging | | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ | Connection Code Machine Side (CCMS) | Weldon |
| Master Insert Identification (MIID) | FF WOMT09T3 | Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Head Length (LH) | 5.89″ | Unit | I |
| Tool Type | Fast Feed Endmill |
Product Features
| Family Description | FEEDMILL, fast feed endmills using FF WO.. inserts. Can run at very high feed rates of up to .059 inch/tooth at small DOC, resulting in high metal removal rates. | FamilyName | FF EW |
| Remarks | For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
3.5274
Name
Indexable End Mills
FamilyName
FF EW
BrandName
Iscar
