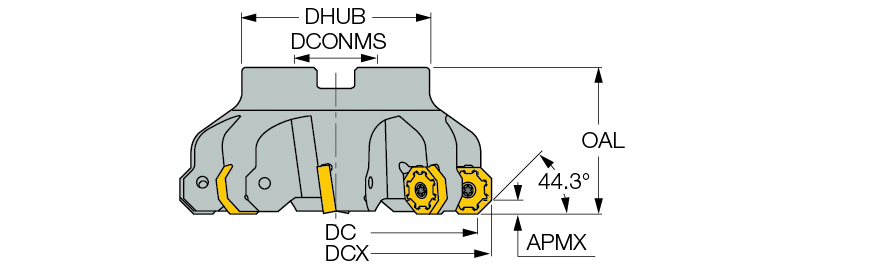

| Cutting Diameter (DC/DCX) | 4.49″ | Master Insert Identification (MIID) | ONHU 080608-TN |
| Cutting Diameter (DC) | 4″ | Coolant Supply Property (CSP) | External |
| Cutting Diameter Maximum (DCX) | 4.49″ | Body Material | Steel |
| Cutting Item Count (CICT) | 7 | Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.22″ | Application | | Facing | Slanted Shoulder & Chamfer | |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Overall Length (OAL) | 2″ | Tool Cutting Edge Angle (KAPR) | 44.3 Degrees |
| Hub Diameter (DHUB) | 3.27″ | Tool Type | 45° Facemills |

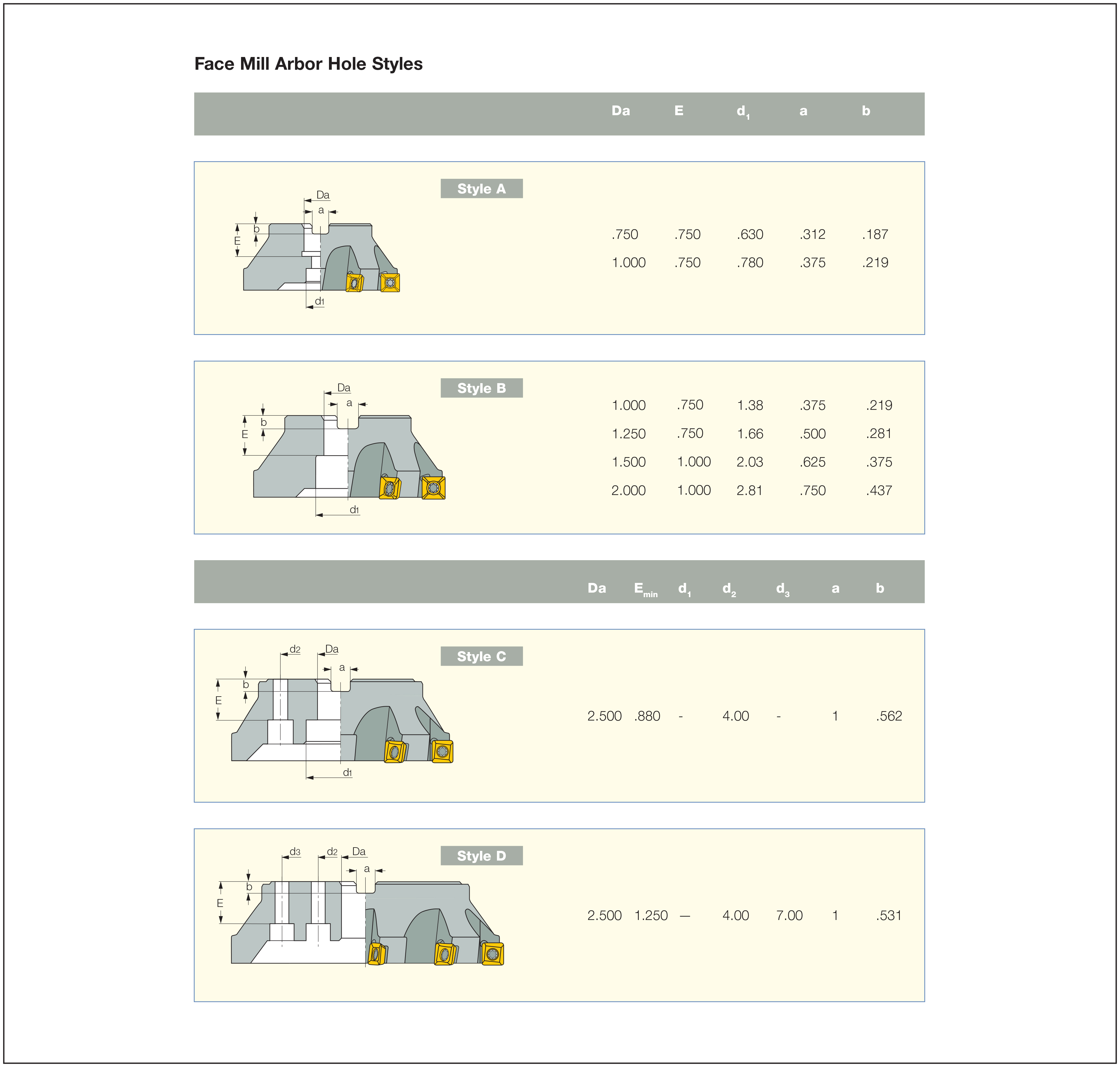

| Arbor Style | B | Unit | I |
Product Features
| Family Description | Screw lock, 45° face mills, carrying Octagonal ONHU/MU0806... inserts with 16 cutting edges. Feature high table speed. | FamilyName | F45NM |
| Remarks | Wiper inserts are used on face mill cutters, providing improved surface finish, thus eliminating the use of other finishing cutters | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
4.0389
Name
Indexable Face Mills
FamilyName
F45NM
BrandName
Iscar
