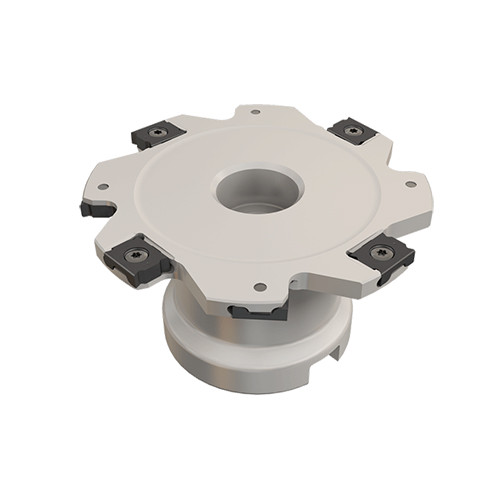

FDN D063-06-16-LN08
Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds.
| Cutting Diameter (DC) | 63 mm | Overall Length (OAL) | 35 mm |
| Cutting Item Count (CICT) | 8 | Master Insert Identification (MIID) | LNET 083504-TN-N |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 | Application | | Side Slotting | Slitting | Slotting | |
| Cutting Depth Maximum (CDX) | 14.5 mm | Arbor Style | A |
| Hub Diameter (DHUB) | 38.4 mm | Tool Type | Double-sided slotting cutters |
| Cutting Width Maximum (CWX) | 6.5 mm | Measurement Type | Metric |
| Cutting Width Minimum (CWN) | 6 mm | Body Material | Steel |
| Usable Length (LU) | 25 mm | Unit | M |
| Flute Count (NOF) | 8 |
Product Features
| Family Description | Full slot cutters carrying LNET 08 tangentially mounted inserts. A very effective solution for parting quality parts such as bearing caps at high cutting speeds. | FamilyName | FDN-LN08 |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.4080
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
FDN-LN08
BrandName
Iscar
