TGSF 63-4-10K

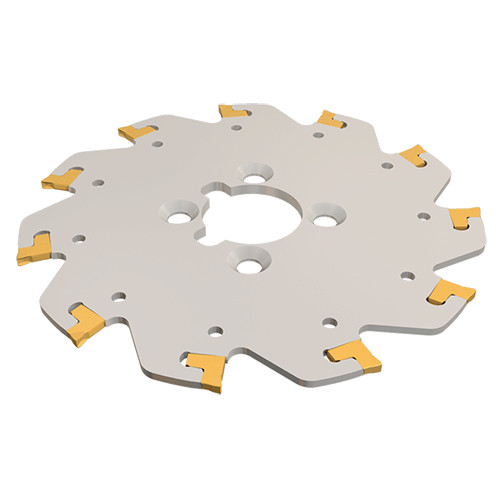

TANGSLIT slitting cutters carrying TANG-GRIP inserts.

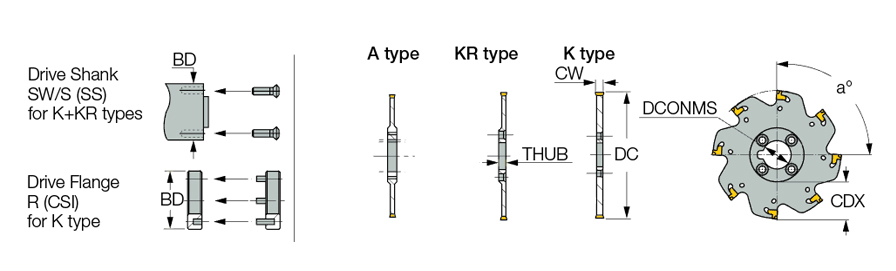

| Cutting Diameter (DC) | 63 mm | Application | | Side Slotting | Slitting | |
| Cutting Item Count (CICT) | 5 | Rotational Speed Maximum (RPMX) | 5000 Rev/min |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 | Tool Type | Slitting cutters |
| Cutting Depth Maximum (CDX) | 14.5 mm | Measurement Type | Metric |
| Hub Thickness (THUB) | 3.3 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 4.05 mm | Connection Code Machine Side (CCMS) | Disk type |
| Cutting Width Minimum (CWN) | 4 mm | Unit | M |
| Master Insert Identification (MIID) | TAG N4C |
Product Features
| Family Description | TANGSLIT slitting cutters carrying TANG-GRIP inserts. | FamilyName | TGSF |
| Remarks | DC varies slightly due to different chip formers having different lengths For precision operations it is recommended to verify diameter offset before machining For drive flange set dimensions, refer to Related Holder | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0790
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TGSF
BrandName
Iscar
