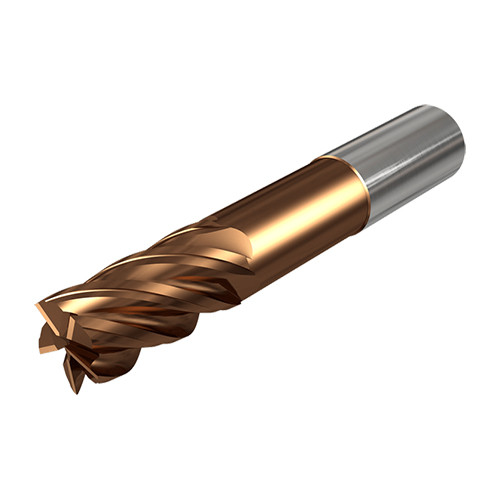

ECI-5 .5-1.63C.015VF4 IC608
5 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening

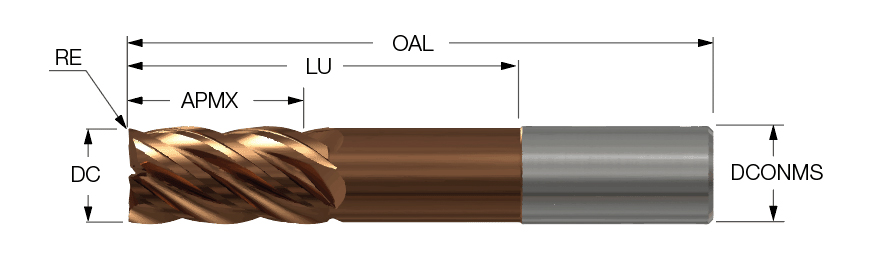

| Cutting Diameter (DC) | 1/2″ | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Grade | IC608 |
| Depth of Cut Maximum (APMX) | 1-5/8″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Overall Length (OAL) | 4″ | Maximum Feed per Tooth (fz(max)) | 0.0034 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.0013 ″/tooth |
| Coating | AlTiCrSiN | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 5 | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.5″ |
| Forma | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1-5/8″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | I |
| Corner Radius (RE) | 0.015″ |
Product Features
| Family Description | 5 flute endmill with and without relieved neck, assorted radii and variable pitch for chatter dampening | FamilyName | ECI-5-VF |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in place of the C in the listed designations (example: ECI-5 .375-1.C.03VF2.5 = cylindrical type; ECI-5 .375-1.W.03VF2.5 = Weldon type) | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
Square & Corner Radius End Mills
FamilyName
ECI-5-VF
BrandName
Iscar
